Gambrel Series Steel Truss


A “Gambrel” truss includes steel girders with steel columns available in straight leg and tapered leg versions.
grmbrel truss barn sketch
A “Gambrel” truss includes steel girders with steel columns available in straight leg and tapered leg versions. The Gambrel series tapered leg version is available in 24’, 30’, 40’,50’ and 60’ widths in eave heights from 8’ through 14’. Trusses are designed to be on 10’ or 12’ centers and available with or without a mezzanine. Available as a hybrid or all steel. Other options include half trusses (lean to) and self-supporting eave extensions (overhangs).
gambrel building truss sketch

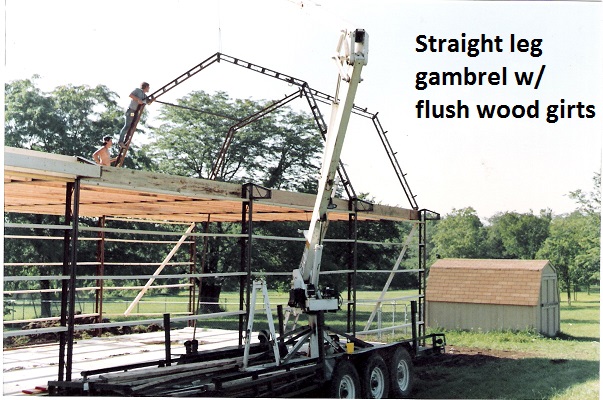

The Gambrel series straight leg version is available in 24’, 30’and 40’ widths in eave heights 8’ through 14’. Trusses are designed to be on 10’ centers and come with mezzanine and 18” eave extension (overhang). Girts are flush mount wood (by customer) and like all of our trusses dipped in a rust inhibiting primer or can be hot dipped galvanized,
All Gambrel truss packages are available with a licensed engineered stamp for any codes and loads required.
