SL Series

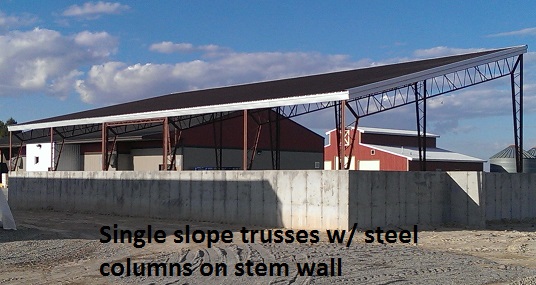

A “SL” series truss is a single slope truss that includes steel girders and steel columns with clear span widths from 10’ through 80’ with available eave heights of 8’ through 20’. Options to set the roof girders on wood post or concrete wall also available. Pre-welded clips on 2’ centers for wood or steel secondary framing. This truss system will support half trusses (Lean-tos) up to 50’ and self supporting eave extensions (overhangs) up to 14’ when using steel columns. Standard truss centers will be 10’ or 12’ with wider centers as an option. Trusses are dipped in a rust inhibiting primer or can be supplied with a hot dipped galvanized finish. All truss packages are available with a licensed engineered stamp for any codes and loads required.
