WP Series Steel Truss

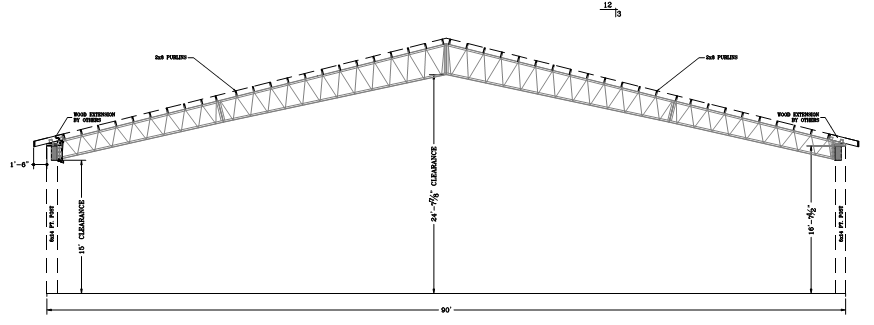

A “WP” series truss includes steel girders to be set on customers wood legs, includes mounts for connection. Clear span widths from 10’ through 100’, available eave heights of 8’ through 20’. Pre-welded clips on 2’ centers for wood or steel secondary framing. Standard truss centers will be 10’ or 12’ with wider centers as an option. End walls can be built out of wood or a live truss can be supplied. Trusses are dipped in a rust inhibiting primer or can be supplied with a hot dipped galvanized finish. All WP truss packages are available with a licensed engineered stamp for any codes and loads required. Requires engineered wood legs by customer.
